Design

Light maple uppers, Painted Sage lowers and tall cabinets, white veined quartz on the counters and up the backsplash, brass hardware, dark LVP floor. The layout control above switches every render and the 3D model in place; the color list switches the cabinet colors where they have been rendered for that layout (newer layouts get the current colors only until a color set is asked for). Click any image to enlarge.

About this layout

v0.1.0 · bins + stools

Island 24 × 48 in with a 36 × 48 in top
Three pull-outs for trash and recycling behind three doors facing the cooktop
12 in seating overhang with two stools

v0.1.1 · cutlery island, 24 in deep

Island 24 × 48 in from two Waypoint boxes, 27 × 51 in top with a 1½ in overhang
DB30 three-drawer base at the dishwasher end, facing the dining side: cutlery on top, plates on pegs below
BWBB18-2 double trash pull-out at the north end, facing the cooktop aisle
No stools

v0.1.2 · cutlery island, 36 in deep

Island 36 × 48 in (39 × 51 in top), a full 36 in prep surface: the v0.1.1 boxes plus a 12 in reduced-depth row behind each
B30 RD-12 doors facing the cook (boards, sheet pans, trays); B18 RD-12 door facing the table (placemats, napkins)
Corner: BLB45/48 FH blind box turned onto the cooktop run (corner study E), 48 in of wall, no filler
One full-height 21 in corner door on the pull-out frame; its 17¾ in opening fits the Cornerstone Maxx or Magic Corner
B24 drawers beside the sink instead of the B15

v0.1.3 · v0.1.2 + microwave base, roll-out pantry
Everything in v0.1.2, plus:

BMC24 microwave base right of the cooktop (countertop microwave over two drawers), so the corner counter stays clear
Pantry ordered as UT2424 X 96 4SSK with four factory full-width sliding shelves

v0.1.4 · v0.1.3 + combination oven tower
Everything in v0.1.3, plus:

GE Profile PT7800SHSS 30 in combination wall oven (microwave over oven, one unit) in an OVD3396 AS BUTT 1DDWR tower: one 10 in drawer below, DR1630 doors above
Microwave sill near 44 in; GE recommends a higher cutout, which would put it near 50 in
No countertop microwave: the BMC24 goes back to DB24 drawers
The four cookware drawers become one large drawer; pots move to the DB30 under the cooktop and the island
Stock three-drawer DB24 beside the sink, TB9 vertical tray pull-out beside the oven, full-width roll-out tray in the sink base

v0.1.5 · v0.1.4 + cooktop void drawer, island drawers, DW swap
Everything in v0.1.4, plus:

Shop-made 3 in drawer in the voided top of the cooktop base, for skillets and lids
Island: BWBB21-2 FH full-height double trash (two 50 qt bins), no 12 in doors
DB27 RD-18 drawer banks back to back (dishes toward the table, prep toward the cook), DB21 RD-12 behind the trash for the junk drawer and wraps
Dishwasher swapped with the TB9: it sits against the oven tower and its open door clears the island

Everything open, v0.1.5: 3D viewer and renders

v0.1.6 · v0.1.5 + DB33 cooktop base, utensil pull-out, DB12 (option B)
Everything in v0.1.5, with the cooktop wall re-sliced (option B):

DB33 VTD under the cooktop: wider pot drawers (29 in boxes), void drawer kept
9 in BPPUS9 utensil pull-out right beside the burners (only in Waypoint's option notes: confirm with the dealer; fallback B12 FH + Rev-A-Shelf 448UT)
DB12 three-drawer base beside the fridge in place of the DB24
Cooktop and hood move 1½ in north to centre on the DB33; a W2142 north of the hood keeps the gaps even

Everything open, v0.1.6: 3D viewer and renders

v0.1.7 · rearranged: cooktop on the sink wall, oven tower + pantry on the west wall
The v0.1.6 parts rearranged:

Cooktop and brass hood on the sink wall east of the dishwasher: DB33 VTD with the void drawer, the utensil pull-out and a DB15 to the doorway, a W2442 east of the hood
Pantry (UT2424 X 96 4SSK) and the GE oven tower move to the west wall beside the fridge
Blind corner shrinks to a BLB42/45 FH on 45 in of wall (re-check the corner hardware), with a W2142 beside the tower
Unchanged: DB24 and sink base, TB9 beside the sink, island, fridge and its upper

Everything open, v0.1.7: 3D viewer and renders

v0.1.8 · experimental: v0.1.7 frameless, handleless, two equal drawer fronts

Experimental: the v0.1.7 layout as a frameless, handleless kitchen, to judge the look
Slab fronts with 3 mm reveals; each drawer bank as two equal fronts, the upper one hiding an internal drawer
No pulls: a routed finger groove on the top edge of base fronts, the bottom edge of wall cabinets and the meeting edges of the tall doors
Integrated dishwasher panel
Single fronts kept on the full-height trash, the pull-outs, the corner door and the oven-tower drawer
Not a Waypoint product: this look needs a custom or frameless line

v0.1.9 · v0.1.6 + DW by the sink, end-trash island, table placed for real
Everything in v0.1.6, plus:

Dishwasher back beside the sink; TB9 tray pull-out beside the oven tower
Island 51 in long with the trash at the north end: two BWBB18 FH single-bin pull-outs side by side, DB27 RD-18 drawers on both long sides; north walkway 66 in
Pantry ordered plain with Century X-Series pilaster rails; bottom roll-out 17 in clear for the Instant Pot and the food processor
Counters overhang 1½ in on every run, with a drip groove underneath
Dining table placed for real: 32 in from the east wall and 16 in further south, 59 in from the island to the table

Everything open, v0.1.9: 3D viewer and renders

v0.1.10 · v0.1.9 with no uppers beside the hood, spice pull-out, 580F slim shaker with tabs
Everything in v0.1.9, plus:

No wall cabinets on the cooktop wall, so the hood is the feature: 36 in brass canopy hood, quartz from the counter to the ceiling
No shelves beside the hood
Corner: the diagonal upper is replaced by a W2142 with a 3 in filler on the sink wall
DB36 VTD under the cooktop, then the 9 in utensil pull-out and a 9 in BPP9 spice pull-out up to the fridge (no DB12, no filler)
Waypoint 580F doors: full overlay slim shaker with five-piece drawer fronts
3 in brushed gold tab pulls: on the opening edge of doors (a mirrored pair where two doors meet), centred on the top edge of drawers
580F matching panels on the corner blank, the fridge return panel and the tower side above the counter; dummy drawer fronts on the blank island faces
Internal drawer on the bottom shelf of the pantry's upper section
Storage given up: the two W2442 uppers, about 11 cu ft
Island trash end: a BWBB21-2 FH double (two 50 qt bins on one pull-out) beside a BWBB15 FH single, three bins in the 36 in end instead of two (shown in the plan, the 3D model and the everything-open renders; the other renders still show the two BWBB18 FH)

Everything open, v0.1.10: 3D viewer and renders

v0.2.0 · v0.1.10 with a slide-in range, microwave in the tower instead of the wall oven
The v0.1.10 layout in the earlier shaker-with-bar-pulls style, with the cost-saving appliance route:

30 in slide-in induction range in place of the DB36 cooktop base and the GE combination wall oven
Utensil and spice pull-outs beside the range; the fridge moves 6 in south to meet them (about 7½ in of wall left before the laundry doorway)
Two 12 in maple shelves beside the hood
Pots and pans go to the island drawers, the corner pull-out and the drawer under the range
Oven tower without the wall oven: two doors with three sliding shelves up to counter height, a 30 in built-in microwave with trim kit (sill about 36 in), doors above

Everything open, v0.2.0: 3D viewer and renders

v0.2.1 · v0.2.0 in 580F slim shaker with 3 in brushed gold tabs
The v0.2.0 layout, restyled:

Waypoint 580F doors: full overlay, slim 1⅛ in mitered frame, five-piece drawer fronts
3 in brushed gold tab pulls: on the opening edge of doors (a mirrored pair where two doors meet), centred on the top edge of drawers, tucked under the counter overhang
Dummy drawer fronts on the blank island faces, lined up with the DB27 drawers
580F matching panels on the corner blank, the fridge return panel and the tower side above the counter
No shelves beside the hood
Internal drawers on the bottom shelf of the pantry's upper section and on the shelf above the microwave
Island trash end: a BWBB21-2 FH double (two 50 qt bins on one pull-out) beside a BWBB15 FH single, three bins in the 36 in end instead of two (shown in the plan, the 3D model and the everything-open renders; the other renders still show the two BWBB18 FH)

Everything open, v0.2.1: 3D viewer and renders

v0.2.2 · v0.2.1 with the Bosch fridge and panel-ready dishwasher
v0.2.1 (slide-in range, 580F with brushed gold tabs) with:

Bosch 36 in standard-depth French-door fridge (B36FD10ENS or B36FD52SNS), 1 in off the wall, still 6 in further south than in v0.1.x, against the spice drawers
Refrigerator return cut down to 28 in deep so the fridge doors open past 90°; the W3724 X 24DP over the fridge is pulled 4 in forward to match
Bosch SHV78DM3N panel-ready dishwasher with a 580F Painted Sage panel and a 3 in tab
The island moves 4 in east: 40 in from the range counter, matching the 40 in on the sink side
Coffee corner in the north-east corner behind the table: a B15 base ordered 12 in deep (RD-12, drawer over door) with a W1530 above, both set at 45° with angle molding, quartz top at 36 in, 30 in from the table corner and clear of the slider trim
Spice drawers: a DB18 4DWR replaces the 9 in utensil and spice pull-outs, three standard drawers with Waypoint SDIAK18 spice inserts (jars on their sides, alphabetical top to bottom) over one large drawer for refills and tall containers
Pop-up outlet in the island quartz, flush when down, its cap with a quartz insert so it blends in

Everything open, v0.2.2: 3D viewer and renders

v0.1.11 · v0.1.10 with a standard-depth fridge
Everything in v0.1.10, with a standard-depth fridge in place of the counter-depth one:

A 36 in side-by-side about 35¾ in deep with its doors, set 1 in off the wall, so its doors stand about 7 in further into the room than the counter-depth fridge
Waypoint RR96 X 32DP refrigerator return (32 in deep instead of 24 in) so the panel still frames most of the fridge; the doors stand about 5 in past it
The W3724 X 24DP over the fridge stays 24 in deep (the deepest wall cabinet Waypoint makes) and is pulled 8 in forward on blocking so its face lines up with the return
The fridge aisle to the island counter shrinks from about 31 in to about 24 in (dimension in the plan)
The fridge recessed light moves out with the fridge front

v0.1.12 · v0.1.10 with the oven tower in the corner, appliance garage, sink moved east
v0.1.10 (counter-depth fridge) rearranged on the sink wall:

The OVD3396 oven tower with the GE combination oven moves from beside the pantry to the corner end of the sink wall, still facing north, right beside the cooktop corner
The corner counter between the west wall and the tower gets an appliance garage, counter to the wall cabinet (18 in), with a lift-up door facing north toward the cooktop
Above the garage a W2442 ordered 23 in deep (Waypoint Increased Depth) so its door lines up with the garage door, with a Rev-A-Shelf 5PD-24 pull-down shelf in the bottom: no step stool for the corner. The tower sits 1 in further east to make room for the 24 in cabinet (the 3 in filler beside it is ripped to about 2 in)
The sink run slides 33 in east to meet the pantry: a 3 in filler and the DB24 beside the tower, then the SB39 sink, dishwasher and TB9; the sink drain is shortened under the floor
The dishwasher now sits past the east end of the island, so its open door no longer pinches the island
Counter on the sink wall: about 99 in in one run from the tower to the pantry (was about 123 in from the corner to the tower); the corner counter under the garage is given up
Recessed lights on the sink wall re-spaced: over the tower, the drawers, the sink, the dishwasher and the pantry

Everything open, v0.1.12: 3D viewer and renders

v0.1.13 · v0.1.12 with an apron-front (farmhouse) sink
v0.1.12 with a farmhouse sink:

A 36 in single-bowl apron-front sink (fireclay, white, about 36 x 20 x 10 in), its apron 1/4 in proud of the cabinet doors
The SB39 becomes a Waypoint DSB39 farm sink base: two 16 3/4 in doors under the apron, no shelf, 3 1/8 in apron stiles trimmed to the sink (takes sinks 32 3/4 to 37 in wide)
The counter stops at the sides of the sink; the faucet sits a little closer to the backsplash

v0.1.14 · v0.1.12 with a freestanding cast-iron farmhouse sink
v0.1.12 with no cabinet under the sink:

A one-piece enameled cast-iron farmhouse sink (Barclay Alma 42 / Magnus Sudbury 42 class: 41 3/4 x 21 3/8 in) hung on its wall bracket with two enameled front legs: integral 9 5/8 in backsplash, 7 3/8 in apron, fluted drainboard to the left, bowl beside the dishwasher
Nothing under the apron for drips to land on: open floor under the sink, the drain trap in view
Bridge faucet through the sink backsplash (8 in centres)
DB24 beside the sink becomes a DB21 (3 drawers); the filler by the oven tower is ripped about 1/2 in
A finished end panel on the dishwasher side faces the open space; the counters stop at the sink ends

v0.1.15 · v0.1.10 with the Bosch appliance package
v0.1.10 (oven tower beside the pantry, undermount single-bowl sink, no appliance garage) with the appliances we are buying:

Bosch 36 in standard-depth French-door fridge (B36FD10ENS or B36FD52SNS, same box): 35⅝ × 70 in, 33⅛ in deep with handles, 1 in off the wall on its spacers
Refrigerator return cut down to 28 in deep (RR96 X 32DP with Reduced Depth) so it stops behind the fridge doors and they open past 90° for the drawers; the W3724 X 24DP over the fridge is pulled 4 in forward to match
Bosch HBL8454UC 30 in wall oven with the HMC80252UC speed oven flush above it in the OVD3396 tower (24 in doors above)
Bosch NIT8661UC 36 in induction cooktop on the DB36 base, under the 36 in hood
Bosch SHV78DM3N panel-ready dishwasher with a 580F Painted Sage panel and a 3 in tab
The island moves 4 in east: 40 in from the cooktop counter, matching the 40 in on the sink side; fridge aisle about 31 in to the handles, island to the table chairs 43½ in
Fridge aisle to the island is dimensioned on the plan
Coffee corner in the north-east corner behind the table: a B15 base ordered 12 in deep (RD-12, drawer over door) with a W1530 above, both set at 45° with angle molding, quartz top at 36 in, 30 in from the table corner and clear of the slider trim
Spice drawers: a DB18 4DWR replaces the 9 in utensil and spice pull-outs, three standard drawers with Waypoint SDIAK18 spice inserts (jars on their sides, alphabetical top to bottom) over one large drawer for refills and tall containers
Pop-up outlet in the island quartz, flush when down, its cap with a quartz insert so it blends in

Everything open, v0.1.15: 3D viewer and renders

v0.2.3 · v0.2.2 as the base bid: uppers around a Waypoint wood hood, tile backsplash
v0.2.2, drawn as the base bid we are asking the remodeler to price:

3 × 6 in white subway tile backsplash from the counter to the wall cabinets on every run, up behind the sink and at the coffee corner
Wall cabinets back on the range wall: a WER2442 easy-reach corner, a W2142 left of the hood and a W1542 right of it, up to the fridge return
Waypoint RH3642 MB (Modern Box) 36 in range hood between them, finished to match the wall cabinets (maple as drawn), in place of the brass canopy hood
Priced as upgrades: quartz backsplash; or an open range wall with decorative tile or quartz up it (the open, full-height quartz look is v0.2.2)
Island pop-up outlet in the middle of the island, its cap with a quartz insert so it blends in

v0.1.16 · v0.1.15 as the base bid: uppers around a Waypoint wood hood, tile backsplash
v0.1.15, drawn as the base bid we are asking the remodeler to price:

3 × 6 in white subway tile backsplash from the counter to the wall cabinets on every run, up behind the sink and at the coffee corner
Wall cabinets back on the cooktop wall: a WER2442 easy-reach corner, a W2442 left of the hood and a W1842 over the DB18 4DWR, up to the fridge return
Waypoint RH3642 MB (Modern Box) 36 in range hood between them, finished to match the wall cabinets (maple as drawn), trimmed so it sits about 25 in over the cooktop, in place of the brass canopy hood
Priced as upgrades: quartz backsplash; or an open cooktop wall with decorative tile or quartz up it (the open, full-height quartz look is v0.1.15)
Island pop-up outlet in the middle of the island, its cap with a quartz insert so it blends in

current

reversed

two greens

one color

two tone

Aerial viewVirtual visitDownload .sh3dDrag to orbit, scroll or pinch to zoom. Switching layout or color keeps your view.

Wide view from the corner behind the table: every cabinet run at once

coffee corner — Coffee corner behind the table: B15 RD-12 (drawer over door) and W1530 set at 45° beside the sunroom slider, study

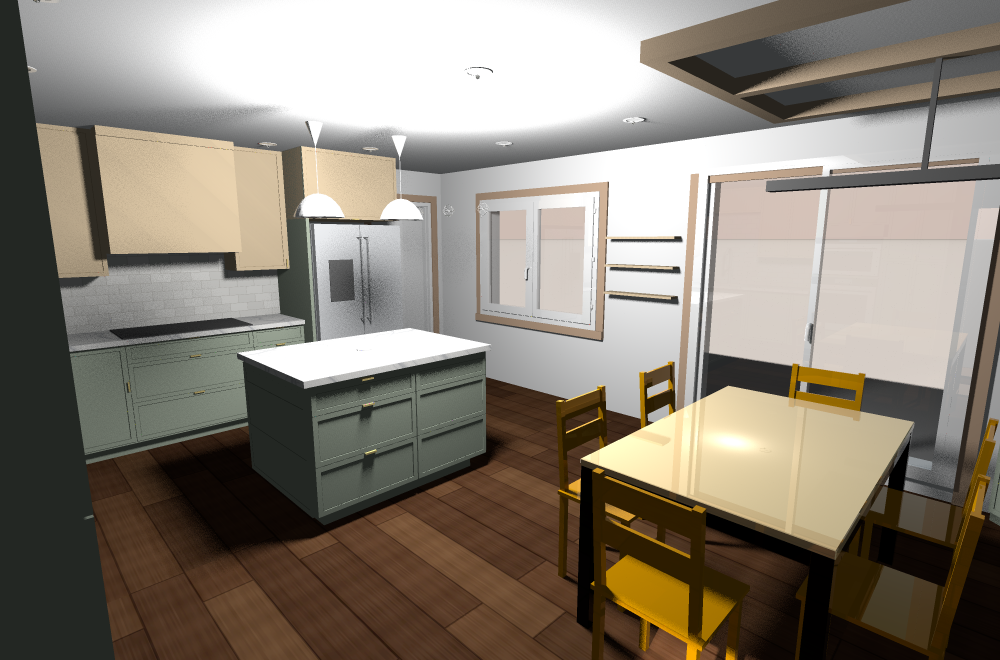

wide — Wide view from the doorway corner

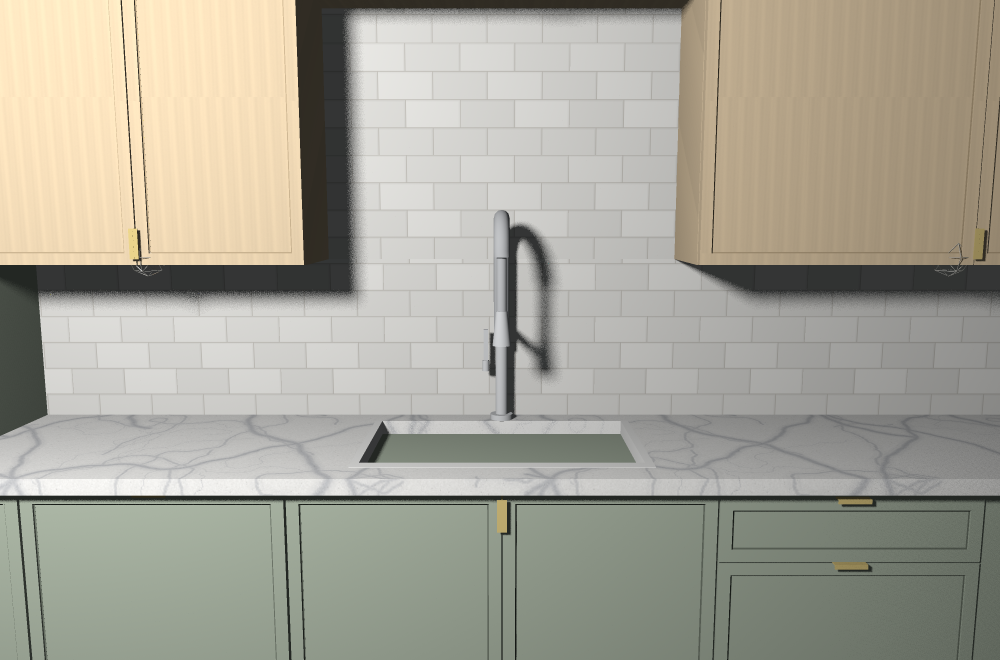

sinkwall — Sink wall, backsplash up to the wall cabinets

Cooktop wall and chimney hoodCooktop wall and chimney hoodCooktop wall and chimney hoodCooktop wall and chimney hoodCooktop wall and chimney hoodCooktop wall and chimney hoodCooktop wall and chimney hoodWest wall: the oven tower (GE PT7800 combination oven) and the pantry stand beside the fridge where the cooktop was; W2142 upper and the 45 in corner counter at the leftWest wall, frameless: slab doors with finger grooves on the oven tower and pantry beside the fridge, no hardwareCooktop wall as v0.1.6: DB33 under the cooktop with the void drawer, 9 in utensil pull-out and DB12 toward the fridgeCooktop wall with no uppers: 36 in brass hood, quartz from the counter to the ceiling; DB36 under the cooktop, utensil and spice pull-outs toward the fridgeCooktop wall with a 30 in slide-in induction range under the 36 in hood, utensil and spice pull-outs toward the fridge, which moves 6 in southCooktop wall with a 30 in slide-in induction range under the 36 in hood, utensil and spice pull-outs toward the fridge, which moves 6 in southRange wall: 30 in slide-in induction range under the 36 in hood, DB18 4-drawer spice base toward the fridge, which moves 6 in southCooktop wall with no uppers: 36 in brass hood, quartz from the counter to the ceiling; DB36 under the cooktop, utensil and spice pull-outs toward the fridgeCooktop wall with no uppers: 36 in brass hood, quartz from the counter to the ceiling; DB36 under the cooktop, utensil and spice pull-outs toward the fridgeCooktop wall with no uppers: 36 in brass hood, quartz from the counter to the ceiling; DB36 under the cooktop, utensil and spice pull-outs toward the fridgeCooktop wall with no uppers: 36 in brass hood, quartz from the counter to the ceiling; DB36 under the cooktop, utensil and spice pull-outs toward the fridgeCooktop wall with no uppers: 36 in brass hood, quartz from the counter to the ceiling; DB36 under the cooktop, DB18 4-drawer spice base toward the fridgeRange wall, base bid: Waypoint RH3642 MB hood between W2142 and W1542 wall cabinets over the 30 in slide-in range, 3 × 6 in tile backsplashCooktop wall, base bid: Waypoint RH3642 MB hood between W2442 and W1842 wall cabinets, 3 × 6 in tile backsplash; DB36 under the cooktop, DB18 4-drawer spice base toward the fridge

Oven tower: wall oven over three cookware drawers (standard over two deep, like the island DB30)Oven tower: wall oven over three cookware drawers (standard over two deep, like the island DB30)Oven tower: wall oven over three cookware drawers (standard over two deep, like the island DB30)Oven tower: wall oven over three cookware drawers (standard over two deep, like the island DB30)Oven tower: GE PT7800 combination oven (microwave over oven, one unit) in an OVD3396 1DDWR, large drawer below, microwave sill at 44 inOven tower as v0.1.4, dishwasher now beside it with the TB9 tray pull-out moved next to the sinkOven tower as v0.1.5Sink wall, east end: the induction cooktop and the brass hood where the oven tower and pantry stood, over the DB33 pot drawers and the void drawer; the 9 in utensil pull-out and the DB15 run to the doorway, W2442 upper east of the hoodSink wall, east end, frameless: two equal slab fronts under the cooktop (void drawer and upper pot drawer behind the top one), utensil pull-out and DB15 as slabs, grooves instead of pullsOven tower as v0.1.6, with the TB9 tray pull-out back beside it and the dishwasher beside the sinkOven tower as v0.1.9Tower without the wall oven: two doors with sliding shelves inside up to counter height, a 30 in built-in microwave at counter height, doors aboveTower without the wall oven: two doors with sliding shelves inside up to counter height, a 30 in built-in microwave at counter height, doors aboveTower without the wall oven: two doors with sliding shelves inside up to counter height, a 30 in built-in microwave at counter height, doors aboveOven tower as v0.1.9Where the oven tower was: the dishwasher and TB9 beside the pantry, the sink moved 33 in eastWhere the oven tower was: the dishwasher and TB9 beside the pantry, the sink moved 33 in eastWhere the oven tower was: the dishwasher and TB9 beside the pantry, the sink moved 33 in eastOven tower as v0.1.9Tower without the wall oven: two doors with sliding shelves inside up to counter height, a 30 in built-in microwave at counter height, doors aboveOven tower as v0.1.9

Southwest corner, countertop microwaveSouthwest corner, countertop microwaveSouthwest corner: BLB45/48 FH blind box on the cooktop run (study E), 21 in full-height door on the corner pull-out frame, B24 drawers beside the sinkSouthwest corner as v0.1.2, with the microwave moved off the corner counter into the BMC24 right of the cooktopSouthwest corner as v0.1.2: DB24 drawers right of the cooktop, no countertop microwave (it is in the combination oven)Southwest corner as v0.1.4, with the shallow drawer in the cooktop void above the two pot drawersSouthwest corner as v0.1.5, with the DB33 under the cooktop, the 9 in utensil pull-out and the DB12 toward the fridgeSouthwest corner: BLB42/45 FH blind box on 45 in of wall, its full-height door beside the oven tower; DB24 drawers and the sink base to the rightSouthwest corner, frameless: slab corner door, two equal drawer fronts on the DB24, slab sink doors, integrated dishwasher panelSouthwest corner as v0.1.6; dishwasher beside the sink base againSouthwest corner: W2142 on the sink wall with a 3 in filler in place of the diagonal corner upper, its handle beside the W2742 handle; open cooktop wall to the rightSouthwest corner as v0.1.10, the range beside the corner pull-out doorSouthwest corner as v0.1.10, the range beside the corner pull-out doorSouthwest corner as v0.1.10, the range beside the corner pull-out doorSouthwest corner: W2142 on the sink wall with a 3 in filler in place of the diagonal corner upper, its handle beside the W2742 handle; open cooktop wall to the rightSouthwest corner: the oven tower at the end of the sink wall beside the cooktop corner, the appliance garage on the corner counter with the deep pull-down cabinet above itSouthwest corner: the oven tower at the end of the sink wall beside the cooktop corner, the appliance garage on the corner counter with the deep pull-down cabinet above itSouthwest corner: the oven tower at the end of the sink wall beside the cooktop corner, the appliance garage on the corner counter with the deep pull-down cabinet above itSouthwest corner: W2142 on the sink wall with a 3 in filler in place of the diagonal corner upper, its handle beside the W2742 handle; open cooktop wall to the rightSouthwest corner as v0.1.10, the range beside the corner pull-out doorSouthwest corner: W2142 on the sink wall with a 3 in filler in place of the diagonal corner upper, its handle beside the W2742 handle; open cooktop wall to the right

Island from the cooktop aisle: 3 pull-out doorsIsland from the dining side: DB30 dish drawers at the dishwasher end36 in deep island from the dining side: DB30 dish drawers at the dishwasher end, shallow door beyond36 in deep island from the dining side (as v0.1.2)36 in deep island from the dining side (as v0.1.2)36 in deep island from the dining side: DB27 RD-18 dish drawers, DB21 RD-12 behind the full-height trash, no 12 in doors36 in deep island from the dining side, as v0.1.536 in deep island from the dining side, as v0.1.5; the oven tower and pantry now on the west wall behind itIsland, frameless: two equal fronts on each drawer bank, full-height trash as one slab, finger grooves only51 in island from the dining side: DB27 RD-18 dish drawers, the two BWBB18 FH trash doors on the north end, table 32 in off the wall and 16 in southIsland as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9Island as v0.1.9

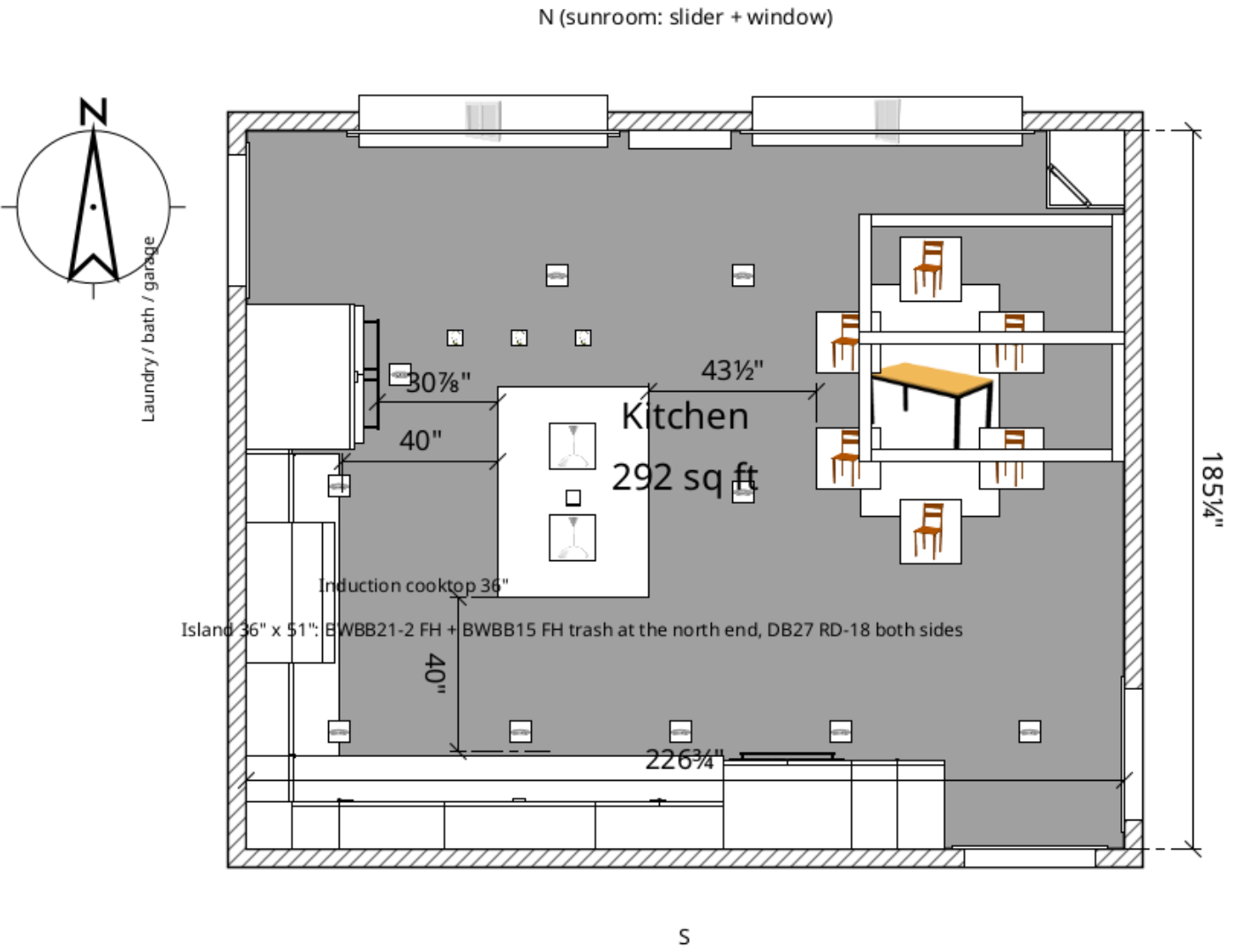

Floor plan, measured dimensions (same for every color)

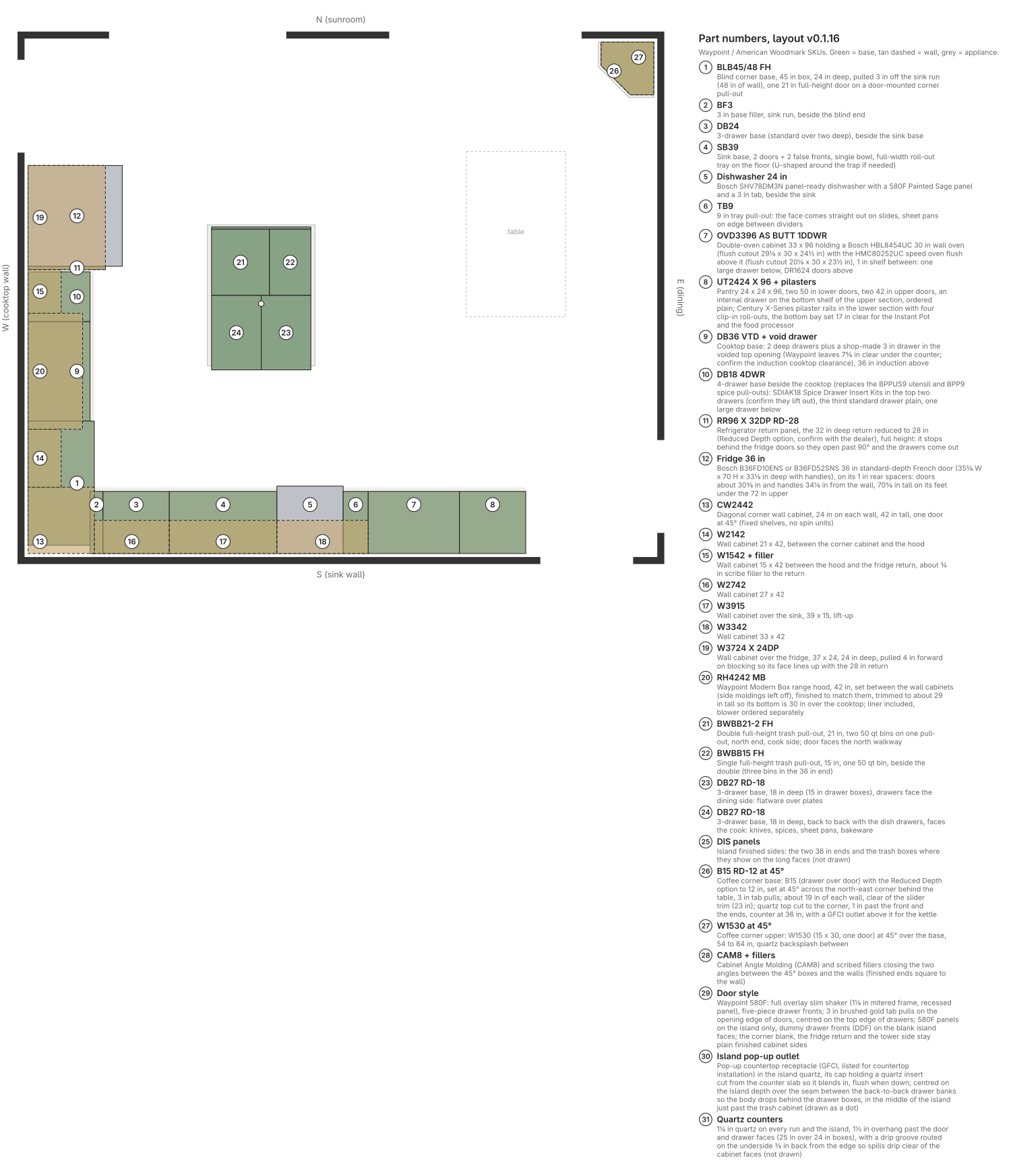

Part numbers: every Waypoint box in this layout, numbered, with a legend
